Microcomputer Electromagnetism Vertical and Horizontal Vibration Table Testing Machine
Brief Introduction:
iqualitrol vibration table tester is a powerful tool to promote your leap into high quality field. The simulation product is in the various vibration environments encountered in the manufacturing, assembly, transportation and execution stages.
The ability to verify the product's resistance to vibration is applicable to the electronics, electromechanical, optoelectronics, communications, computers, automotive motorcycles, toys, packaging, etc. Research, development, and quality control manufacturing are essential to improve product quality and reliability.
Technical Specifications:
| Power supply |
AC380V/50Hz/3Ph |
| Power Consumption |
2KW |
| Vibration direction |
vertical + horizontal |
| Output waveform |
sine wave |
| Output frequency |
0Hz~60 Hz, adjustable |
| Sweep frequency range |
0Hz~60 Hz, adjustable |
| Sweep frequency |
frequency multiplication, linear |
| Maximum load |
100kg |
| Maximum displacement |
0-5mm |
| Time control |
99H99M99S |
| Programmable |
Vertical vibration time can be set arbitrarily |
| Working Table size |
600 x 700mm |
| Overall Dimension |
600X700X800mm |
| Control Box Dimension |
380×370×160mm |
| Net Weight |
280Kg |
Structure and Material:
(1) Carton material: carbon steel electrostatic spray
(2) Machine structure material: 45# steel
(3) Table material: 45# steel
(4) Structure composition: Split type (control box, vibration host)
Control Box Appliances:
1. Inverter: Shanghai Yatai Inverter 380V/50HZ-1.5KW
2. Time Controller: omRon-DH-48S-S/CKCACHL-DH-48S (220~250V)
3, Electrical switch: omRon relay, ZI-EN CI-ENG-JTX-3C general relay (220~250V) AL6 push button switch
Vibrators: Vibrating Electromechanical Devices (380V*1.5KW*2pcs/4P)
Product Tags:
|
|

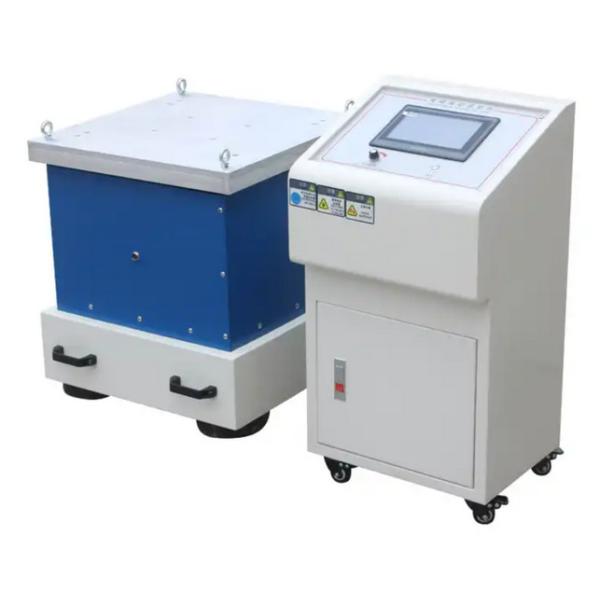

Microcomputer Electromagnetism Testing Machine Vertical And Horizontal Vibration Direction Images
|
